VVP 18

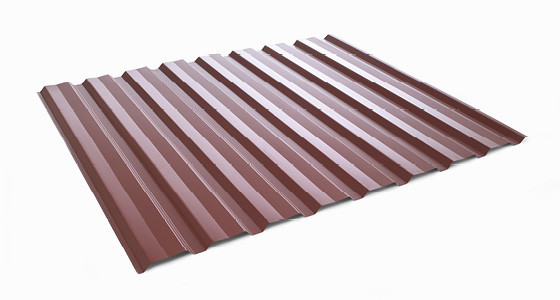

Can be installed either vertically or horizontally Borga VVP 18 is commonly used for wall cladding on larger commercial and residential buildings. The innovative profile gives the facade a living, classic and timeless appearance. The sheet has a large covering width, which makes it an economical alternative for facade renovations as well as new production.

The steel core is passivated and painted with a primer and a top layer in polyester P30, P50 or MAT.

Available thicknesses: 0.5 mm / 0.6 mm

VVP18

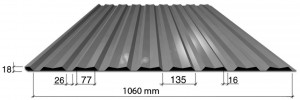

PROFILE DATA VVP 18

Nominal thickness tnom mm 0,5 0,6
Thickness for calculation tber mm 0,441 0,538
Mass m kg/m2 4,4 5,2
Yield strength fty N/mm2 250 250
Hight mm 18 18
Cover width mm 1060 1060
Min. length mm 500 500
Max. length mm 9000 10000
Support reaction, end support Rd kN/m 3,45 5,06
Support reaction, 50 mm support width Rd kN/m 11,80 16,98
Support reaction,100 mm support width Rd kN/m 15,50 22,12
Shear buckling capacity, flange Vf kN/m 23,0 29,6
Shear buckling capacity, rib Vw kN/m 63,7 77,7
Shear buckling capacity, global L2Vgd kN/m 18,1 24,4
Torque, positive pressure effect Md kNm/m 0,422 0,561
Moment of inertia, positive pressure effect Idef mm4/mm 15,7 20,3
Moment, negative pressure effect Md kNm/m 0,452 0,583
Moment of inertia negative pressure effect Idef mm4/mm 21,2 27,1
Walkabilit (c:c) calculated at a person weight of 100 kg, taklutning <14°, infäst m 0,41 0,49
Walkabilit (c:c) calculated at a person weight of 100 kg, >2-fack, taklutning <14°, infäst m 0,48 0,58
Walkabilit (c:c) calculated at a person weight of 100 kg, 2-fack, taklutning <14°, ej infäst m 0,33 0,40

Profile data is calculated according to the Eurocode.

Color variation
Standard Colors

White 9106

Light Grey 7035

Silver 9006

Graphite 0087

Black 9005

Beige 1015

Yellow 0453

Reseda Green 6011

Green 0510

Sky Blue 5015

Glowing Blue 5010

Brick Red 8004

Red 0302

Cherry Red 3009

Brown 8017

an aesthetic wall profile for large buildings
