Ekonomi

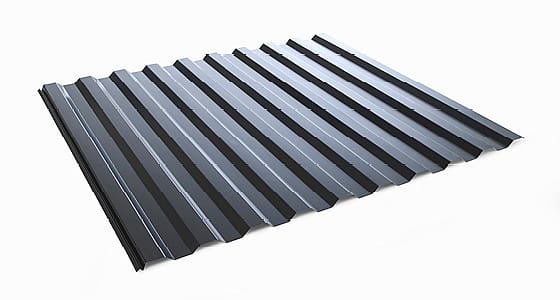

One of our most popular profiles, used for both roofing and wall cladding. Borga Ekonomi has a low height and a large covering width. The symmetrical profile makes it extremely versatile, since it doesn’t require a complicated substructure to support it. The profile has a special water groove preventing rainwater from coming in through the overlap.

To prevent condensation drops from forming on the ceiling of uninsulated buildings, it is recommended to apply Borga DropStop to the undersurface of the roof profiles.

The steel core is passivated and painted with a primer and a top layer in polyester P30, P50 or MAT.

Available thicknesses: 0.4 mm / 0.45 mm / 0.5 mm / 0.6 mm

Borga-Ekonomi-web2

PROFILE DATA EKONOMI

Nominal thickness tnom mm 0.5 0.6
Thickness for calculation tber mm 0.441 0.538
Mass m kg/m2 4.5 5.3
Yield strength fty N/mm2 250 250
Hight mm 18 18
Cover width mm 1030 1030
Min. length mm 500 500
Max. length mm 9000 10000
Support reaction, end support Rd kN/m 4.01 5.87
Support reaction, 50 mm support width Rd kN/m 13.70 19.72
Support reaction,100 mm support width Rd kN/m 17.97 25.70
Shear buckling capacity, flange Vf kN/m 63.7 77.7
Shear buckling capacity, rib Vw kN/m 63.7 77.7
Shear buckling capacity, global L2Vgd kN/m 20.9 28.2
Torque, positive pressure effect Md kNm/m 0.545 0.735
Moment of inertia, positive pressure effect Idef mm4/mm 22.3 29.2
Moment, negative pressure effect Md kNm/m 0.545 0.735
Moment of inertia negative pressure effect Idef mm4/mm 22.3 29.2
Walkability (c:c) calculated at a person weight of 100 kg, 2-bay, roof slope<14°, fastened m 0.43 0.54
Walkability (c:c) calculated at a person weight of 100 kg, >2-fack, roof slope <14°, fastened m 0.51 0.64
Walkability (c:c) calculated at a person weight of 100 kg, 2-fack, roof slope <14°, not fastened m 0.35 0.44

Profile data is calculated according to the Eurocode.

Color variation

White 9106

Light Grey 7035

Silver 9006

Graphite 0087

Black 9005

Beige 1015

Yellow 0453

Reseda Green 6011

Green 0510

Sky Blue 5015

Glowing Blue 5010

Brick Red 8004

Red 0302

Cherry Red 3009

Brown 8017
