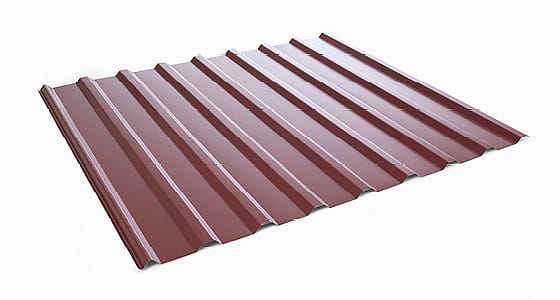

BPD 18

Commonly used for large roofs on industrial and agricultural buildings, and also well suited for wall cladding. Borga BPD 18 has a classical look and a very large covering width, which makes it a very economical alternative to traditional 20 mm profiles. The asymmetrical shape with narrow upper ribs and wide bottom grooves gives an ageless appearance to the roof. The profile has a special water groove preventing rainwater to come in through the overlap.

To prevent condensation drops to form in the ceiling of uninsulated buildings, it is recommended to apply Borga DropStop to the undersurface of the roof profiles.

The steel core is passivated and painted with a primer and a top layer in polyester P30, P50 or MAT.

Available thicknesses: 0.4 mm / 0.45 mm / 0.5 mm / 0.6 mm

Borga-BPD18-web2

PROFILE DATA BPD 18

Nominal thickness tnom mm 0.5 0.6
Thickness for calculation tber mm 0.441 0.538
Mass m kg/m2 4.3 5.1
Yield strength fty N/mm2 250 250
Hight mm 18 18
Cover width mm 1080 1080
Min. length mm 500 500
Max. length mm 9000 10000
Support reaction, end support Rd kN/m 3.45 5.06
Support reaction, 50 mm support width Rd kN/m 11.80 16.98
Support reaction,100 mm support width Rd kN/m 15.50 22.12
Shear buckling capacity, flange Vf kN/m 15.9 28.8
Shear buckling capacity, rib Vw kN/m 63.7 77.7
Shear buckling capacity, global L2Vgd kN/m 19.7 26.6
Torque, positive pressure effect Md kNm/m 0.478 0.630
Moment of inertia, positive pressure effect Idef mm4/mm 23.4 30.4
Moment, negative pressure effect Md kNm/m 0.434 0.578
Moment of inertia negative pressure effect Idef mm4/mm 16.1 21.0
Walkability (c:c) calculated at a person weight of 100 kg, 2-bay, roof slope<14°, fastened m 0.44 0.54
Walkability (c:c) calculated at a person weight of 100 kg, >2-bay, roof slope <14°, fastened m 0.53 0.64
Walkability (c:c) calculated at a person weight of 100 kg, 2-bay, roof slope <14°, not fastened m 0.36 0.44

Profile data is calculated according to the Eurocode.

Color variation
Standard Colors

White 9106

Light Grey 7035

Silver 9006

Graphite 0087

Black 9005

Beige 1015

Yellow 0453

Reseda Green 6011

Green 0510

Sky Blue 5015

Glowing Blue 5010

Brick Red 8004

Red 0302

Cherry Red 3009

Brown 8017

Color Map
  • Color Map Standard
