VP 45

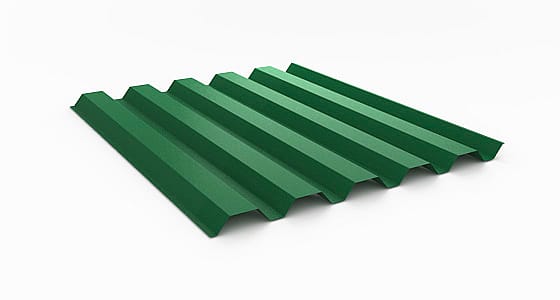

A strong wall profile allowing wide distances between supports. Borga VP 45 is commonly used for wall cladding on larger industrial and commercial steel halls. The profile’s traditional yet upscaled shape gives the facade an attractive appearance. The profile height makes the sheet strong, thus enabling an overall economic wall solution.

The steel core is passivated and painted with a primer and a top layer in polyester P30, P50, MAT or our premium Metallic Colofer® City Lights series.

Available thicknesses: 0.5 mm / 0.6 mm

Borga-VP45-web2

PROFILE DATA VP 45

Nominal thickness tnom mm 0.5 0.6
Thickness for calculation tber mm 0.441 0.538
Mass m kg/m2 4.9 5.8
Yield strength fty N/mm2 250 250
Hight mm 43 43
Cover width mm 950 950
Min. length mm 500 500
Max. length mm 12000 12000
Support reaction, end support Rd kN/m 2.48 3.63
Support reaction, 50 mm support width Rd kN/m 8.47 12.20
Support reaction,100 mm support width Rd kN/m 11.11 15.89
Shear buckling capacity, flange Vf kN/m 15 27.2
Shear buckling capacity, rib Vw kN/m 32.9 59.8
Shear buckling capacity, global L2Vgd kN/m 63.7 77.7
Torque, positive pressure effect Md kNm/m 1.043 1.442
Moment of inertia, positive pressure effect Idef mm4/mm 101.1 133.1
Moment, negative pressure effect Md kNm/m 1.13 1.592
Moment of inertia negative pressure effect Idef mm4/mm 126.7 169.8
Walkability (c:c) calculated at a person weight of 100 kg, 2-bay, roof slope<14°, fastened m 1.10 1.48
Walkability (c:c) calculated at a person weight of 100 kg, >2-fack, roof slope <14°, fastened m 1.30 1.75
Walkability (c:c) calculated at a person weight of 100 kg, 2-fack, roof slope <14°, not fastened m 0.89 1.20

Profile data is calculated according to the Eurocode.

Color variation

White 9106

Light Grey 7035

Silver 9006

Graphite 0087

Black 9005

Beige 1015

Yellow 0453

Reseda Green 6011

Green 0510

Glowing Blue 5010

Sky Blue 5015

Brick Red 8004

Red 0302

Cherry Red 3009

Brown 8017
