VVP 45

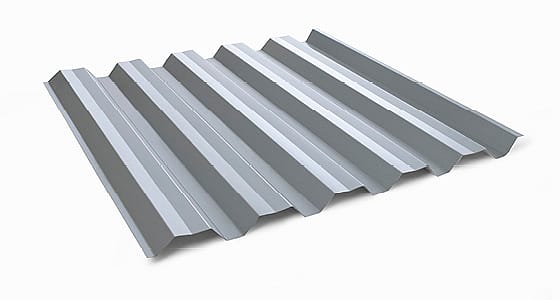

For larger buildings where a strong profile is required. Borga VVP 45 is commonly used for wall cladding on larger industrial and commercial buildings. The innovative profile gives the facade a living and timeless appearance.The sheet’s profile height makes it strong, which makes it an economical alternative for constructions where longer distances between supports are required.

The steel core is passivated and painted with a primer and a top layer in polyester P30, P50 or MAT.

Available thicknesses: 0.5 mm / 0.6 mm

Borga-VVP45-web2

PROFILE DATA VVP 45

Nominal thickness tnom mm 0.5 0.6
Thickness for calculation tber mm 0.441 0.538
Mass m kg/m2 4.9 5.8
Yield strength fty N/mm2 250 250
Hight mm 43 43
Cover width mm 950 950
Min. length mm 500 500
Max. length mm 12000 12000
Support reaction, end support Rd kN/m 2.48 3.63
Support reaction, 50 mm support width Rd kN/m 8.47 12.20
Support reaction,100 mm support width Rd kN/m 11.11 15.89
Shear buckling capacity, flange Vf kN/m 15 27.2
Shear buckling capacity, rib Vw kN/m 32.9 59.8
Shear buckling capacity, global L2Vgd kN/m 63.7 77.7
Torque, positive pressure effect Md kNm/m 1.043 1.442
Moment of inertia, positive pressure effect Idef mm4/mm 101.1 133.1
Moment, negative pressure effect Md kNm/m 1.13 1.592
Moment of inertia negative pressure effect Idef mm4/mm 126.7 169.8
Walkability (c:c) calculated at a person weight of 100 kg, 2-bay, roof slope<14°, fastened m 1.10 1.48
Walkability (c:c) calculated at a person weight of 100 kg, >2-fack, roof slope <14°, fastened m 1.30 1.75
Walkability (c:c) calculated at a person weight of 100 kg, 2-fack, roof slope <14°, not fastened m 0.89 1.20

Profile data is calculated according to the Eurocode.
